SmallRig V Mount Battery Plate 2988
SmallRig V Mount Battery Plate 2988 utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s). It features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories. Two stoppers will prevent the battery from twisting when attached. The plate supports a variety of different installation ways and is compatible with the Blackmagic URSA mini.
Note:
1. No V-Lock part (male) provided with the plate.
2. This is purely a mounting solution for a V-mount battery — no power ports on the plate.
Key Features
1. The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s).
2. Two stoppers prevent the battery from twisting when attached.

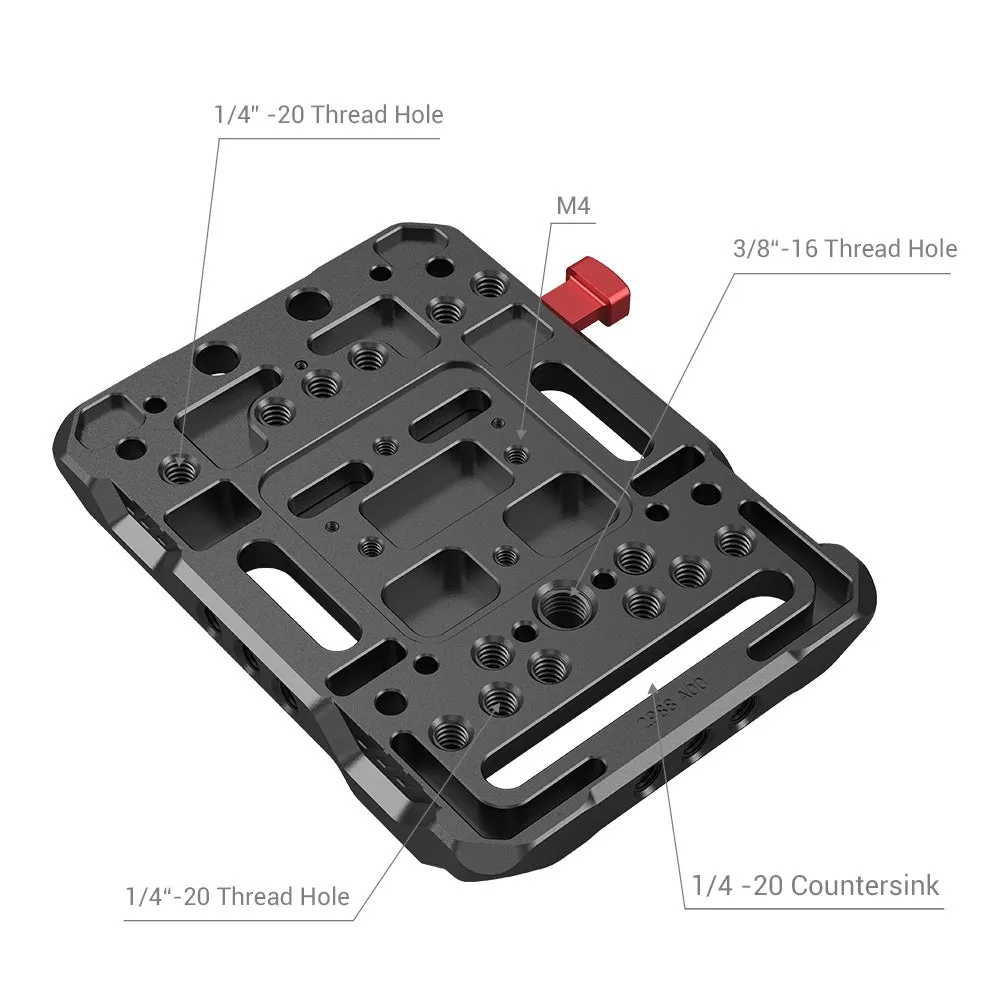

3. It features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories.
4. It supports a variety of different installation ways and is compatible with the Blackmagic URSA mini.
Work With
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

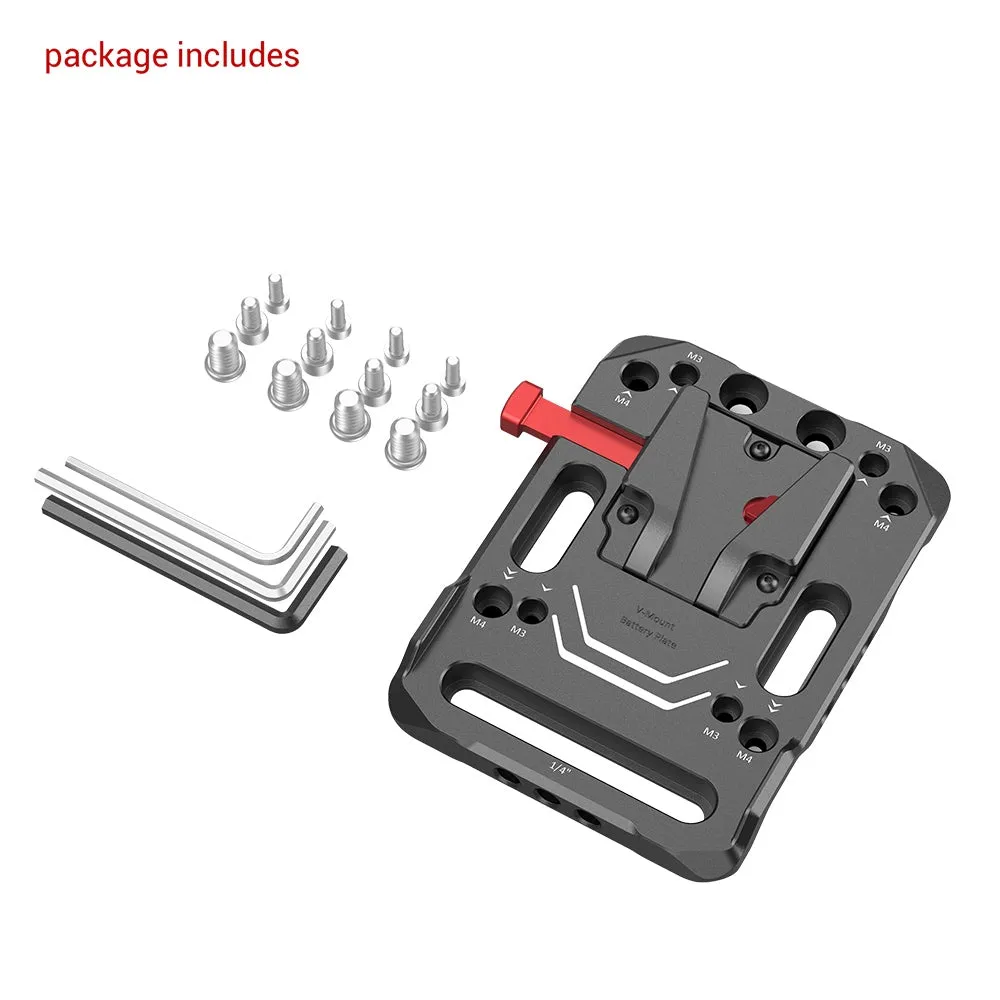

Packing List
1 x V Mount Battery Plate
3 x Allen Wrench
2 x 1/4-20" Screw
4 x M4 Screw
4 x M3 Screw
Technical Data
Product Dimensions: 72 x 90.5 x 13.8mm
Package Dimensions: 120 x 100 x 40mm
Net Weight: 140g±5g
Package Weight: 182g±5g
Material(s): Aluminum Alloy
